Lab Mixer Kneader Pigment Paste Kneading Machine Double Sigma Blade Kneader Mixer

Basic Info.

Application Area	Chemical
Certification	CE, ISO
Condition	New
Working	Shear Mixer
Highest Temperature	<400 Degee Centrigrade
Vacuum	-0.096MPa
Heating Methods	Steam/Hot Oil/Electricity Heating
Cooling Methods	Cooling Water or Oil
Product Type	High Viscosity Materials
Mixer Type	Horizontal Weightlessness Mixer
Layout Type	Horizontal
Operating type	Continuous Operating
Transport Package	Plywood Packaging
Specification	500L
Trademark	KEDA
Origin	Shandong China
HS Code	8479820090
Production Capacity	500PCS Peryear

Product Description

Lab Mixer Kneader Pigment Paste Kneading Machine Double Sigma Blade Kneader Mixer

Lab Plastic Rubber Machine , lab kneader mixer ,Banbury Mixer,Intensive Kneader Machine

Product Description

Laboratory Banbury Rubber Internal Mixer with Taiwan technical drawings, advanced technology in China and imported core components, this machine has character itself as environmental-friendly, high-efficiency and good dispersing effect, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production. It can also be used in electric wire, cable, electronics, sole, sports equipment and auto parts industries for rubber, plastic and chemical production mixing and plasticizing.

The feature for dispersion kneader:

3.1 An automatic temperature and time control system to provide a 100% mixing result.

3.2 Easy to clean chamber and changing colors.

3.3 In6~10minutes/batch of output equivalent to 2 units of open mixing mill.

3.4 Pressurized and sealed mixing chamber to provide high mixing performance and prevent the environment. 3.5 Easy installation, operation and maintenance, lower the running cost.

Applications

Rubber Industry
Plastic Industries
Chemical Industries

Lab Mixer Kneader Pigment Paste Kneading Machine Double Sigma Blade Kneader Mixer

5l-5000l sigma kneader , stainless steel, hydraulic tilting the chamber, screw extruder, ex-proof,
wear resistant liner, heavy-duty, vacuum system, cooling, heating system, screw extruder, control cabinet, cutter, filter.

1. Short brief:

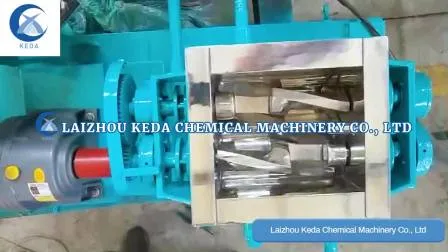

Each set of sigma kneader has two pieces of sigma blades inside the w type mixing chamber. It is widely used to knead, mix, crush, disperse and re-polymerize high viscosity paste or elastoplastic materials, which can not be processed by the general powder mixers and liquid blenders.

It is the ideal equipment for all kinds of chemical products and has the advantages of stirring evenly, kneading efficiently and no dead corner.

2. Uses:

Sigma kneader is suitable to make carbon fiber, cmc, bmc, dmc, construction adhesives, silicone sealant, silicone rubber, bubble gum, chewing gum, cellulose, and is also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics and other industries.

3. Performances:

1) PLC control and record the temperature, time, viscosity and other relevant data in real time during production.
2) contacting parts are made of stainless steel, to ensure product's quality.
3) the sigma kneader can be used for the high-viscosity paste or plastic solid with poor mobility around 50000pa. S, and the jacket can be heated or cooled by the heat transfer oil or water. According to the special needs, the plant can be designed to operate in a vacuum.

4. Notes:

(1) our company can design the equipment according to user's specific requirements.
(2) for the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
(3) if you are not certain of which type to choose, please call us and our profession sales engineers will recommend for you.

Volume(L)		5	10		100	300	500	1000	1500	2000	3000	4000	5000
Rotation Speed(rpm)		33 23	33 23		35 22	37 21	37 21	35 25	30 16	30 16	38 27	38 27	38 27
Main Motor Power(kw)		0.75	1.1		3-7.5	11-30	15-37	22-90	22-90	30-110	30-110	45-110	55-132
Heating Methods	Steam: Pressure (MPa)	0.3
Heating Methods	Electric: Power (kw)	1	1		4	9	16.2	27	32.4	40	72	72	96
Vacuum(MPa)		-0.094 (Vacuum Kneader)
Pressure(MPa)		0.45 (Pressure Kneader)					0.35 (Pressure Kneader)				0.3(Pressure Kneader)
Weight(kg)		300		400	1250	1600	3000	4500	5800	6500	~11000	~13000	~21000
